Project Insight: Engineering Pune’s 112m Precast Landmark

In a rapidly urbanizing India, vertical growth is no longer a choice—it is a necessity. However, building upward in earthquake-prone zones presents a dual challenge: the need for complex, rigorous structural detailing and the demand for high-speed construction.

This project is a live demonstration of how StruEngineers is currently redefining vertical growth in India. As the structure rises to its 112m height in Pune, our team is actively proving that complex structural detailing and high-speed construction can happen simultaneously through the power of IMPACT Software.

Project Overview & Scope

Located in the heart of Pune, this commercial project stands as a testament to modern engineering. The structure’s sheer scale required a meticulously planned precast strategy combined with advanced structural systems.

• Height: 112 Meters
• Configuration: 2 Basements + Ground Floor + 7 Podium Levels + Amenity Floor + 16 Office Floors.
• Structural Systems & Key Precast Elements:

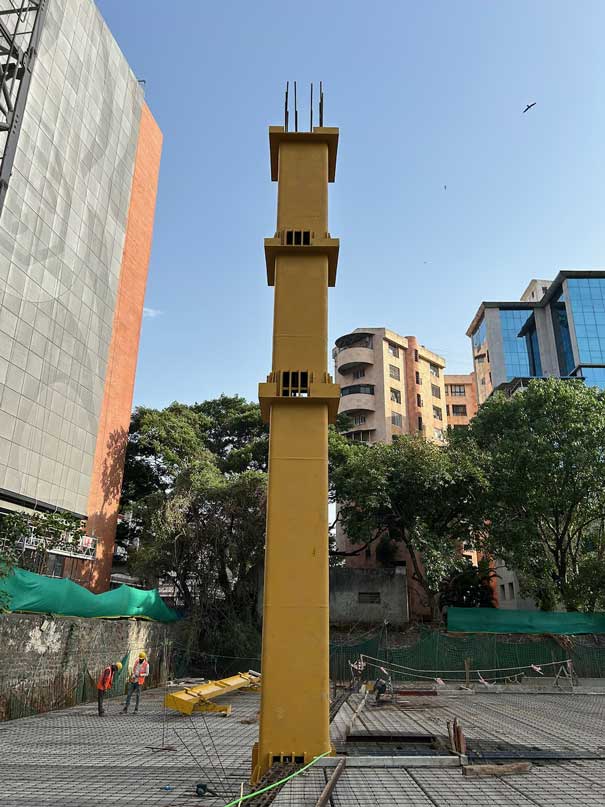

  • REP Technology: The main columns and beams utilized the REP system, integrated seamlessly with precast elements.

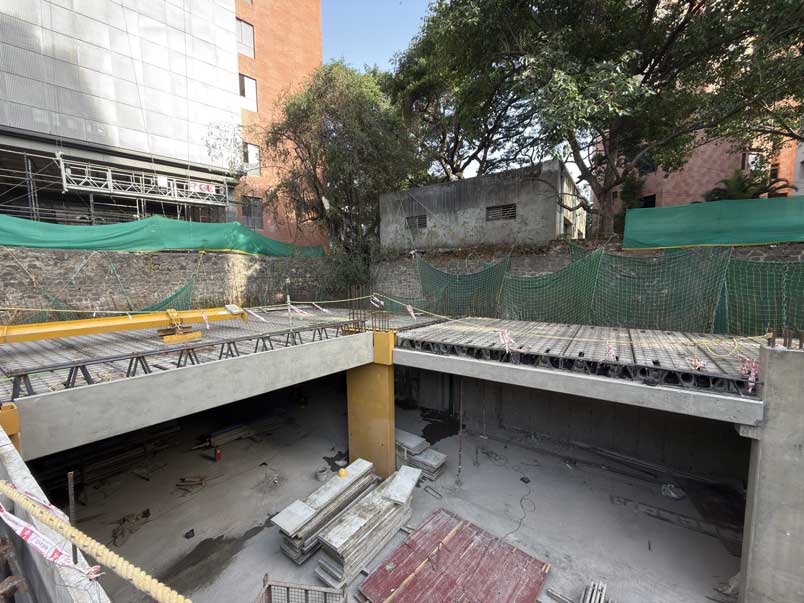

  • Horizontal Members: Core beams, Hollow Core Slabs (HCS), and Prestressed Solid Slabs (PSS).

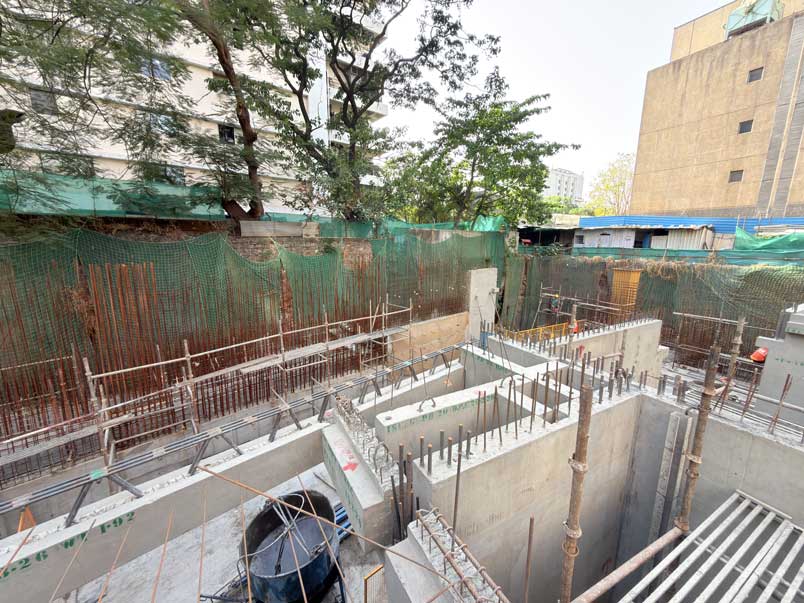

  • Vertical Members: Precast Shear Walls (Structural & Non-structural).
  • Ancillary Components: Precast Staircases.

The Challenge: Complexity at Scale

High-rise commercial buildings require diverse functional requirements at different levels—from expansive parking in the podiums to specialized amenity zones and open-plan office spaces. These shifting requirements lead to intricate detailing hurdles, especially when ensuring seismic resilience in a precast framework. Integrating the REP technology with standard precast elements demanded exceptionally close coordination to ensure structural integrity across different systems.

The Solution: Leveraging IMPACT Software

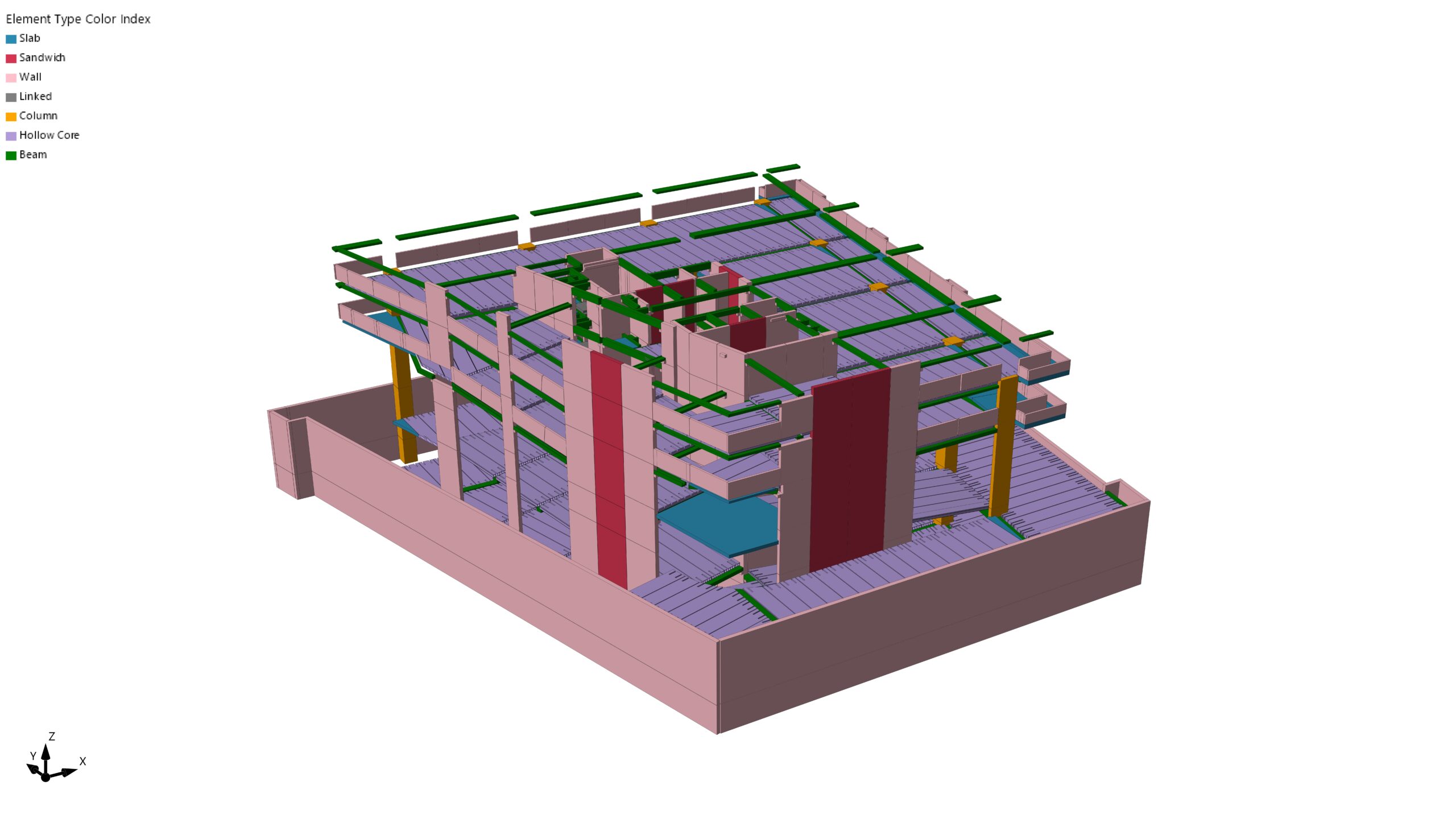

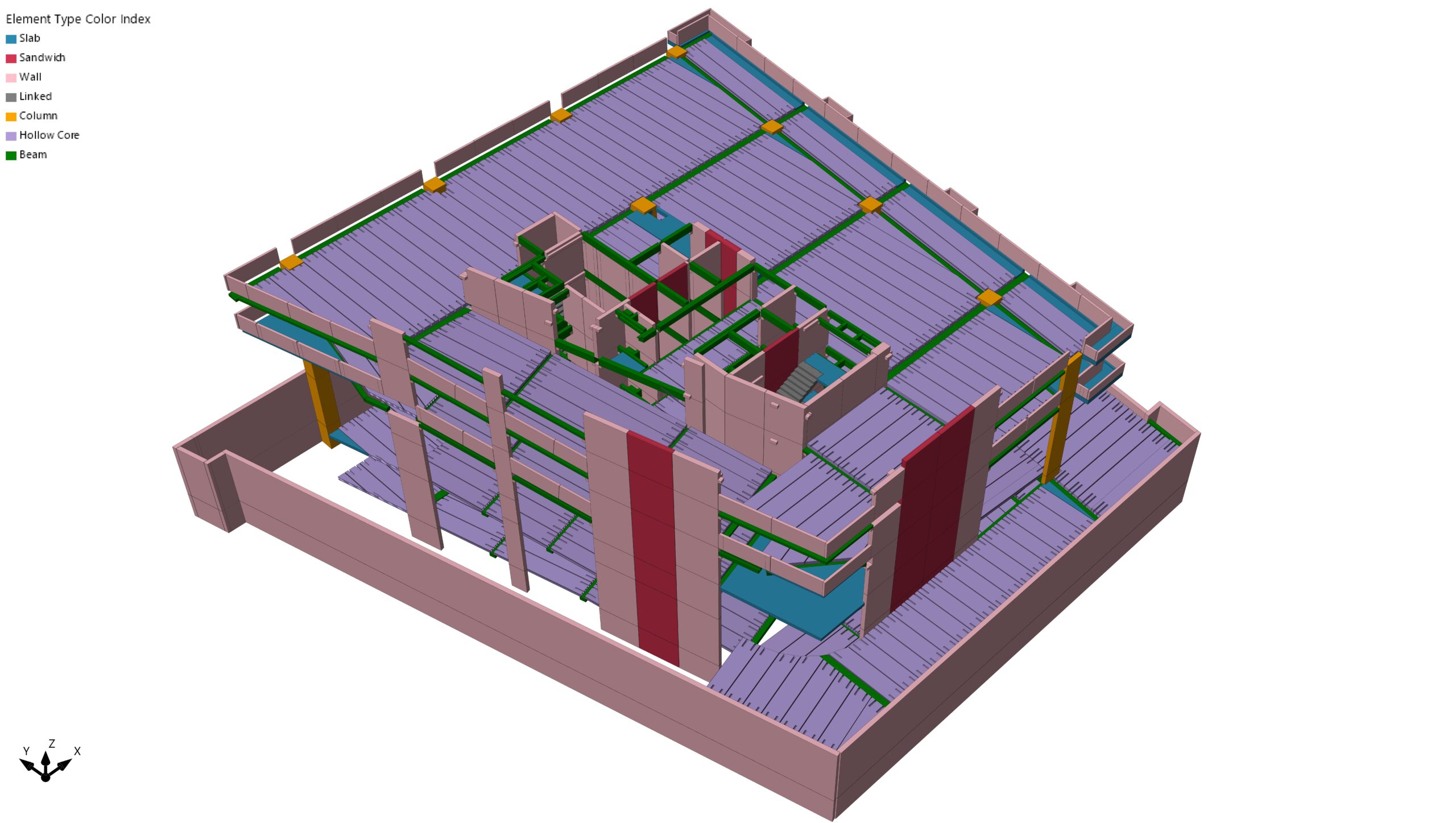

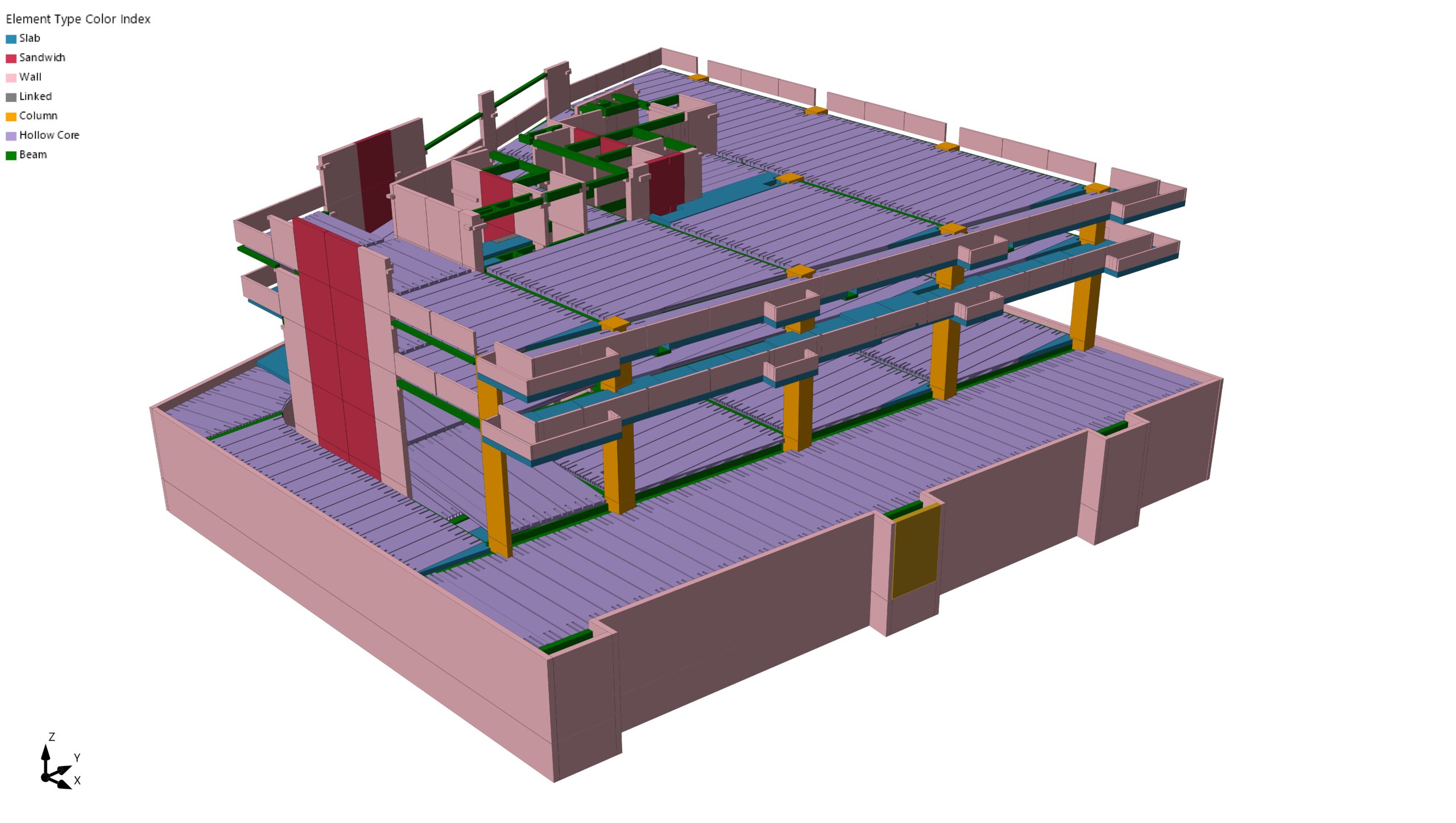

To manage this complexity, our team utilized IMPACT software, a specialized BIM tool for the precast industry. IMPACT allowed us to move beyond standard 2D limitations, providing:

• Seamless Modelling & Detailing: We maintained a simultaneous workflow where modelling and detailing happened in tandem, ensuring that the structural “skeleton” always matched the architectural “skin.”
• Customization for Indian Standards: While precast is a global technology, our team successfully adapted the software’s capabilities to meet specific Indian building codes and earthquake-resistant design requirements.
• Data-Driven Logistics: IMPACT provided the precision needed to manage the production and delivery schedule of hundreds of unique elements, ensuring the site never stood still.

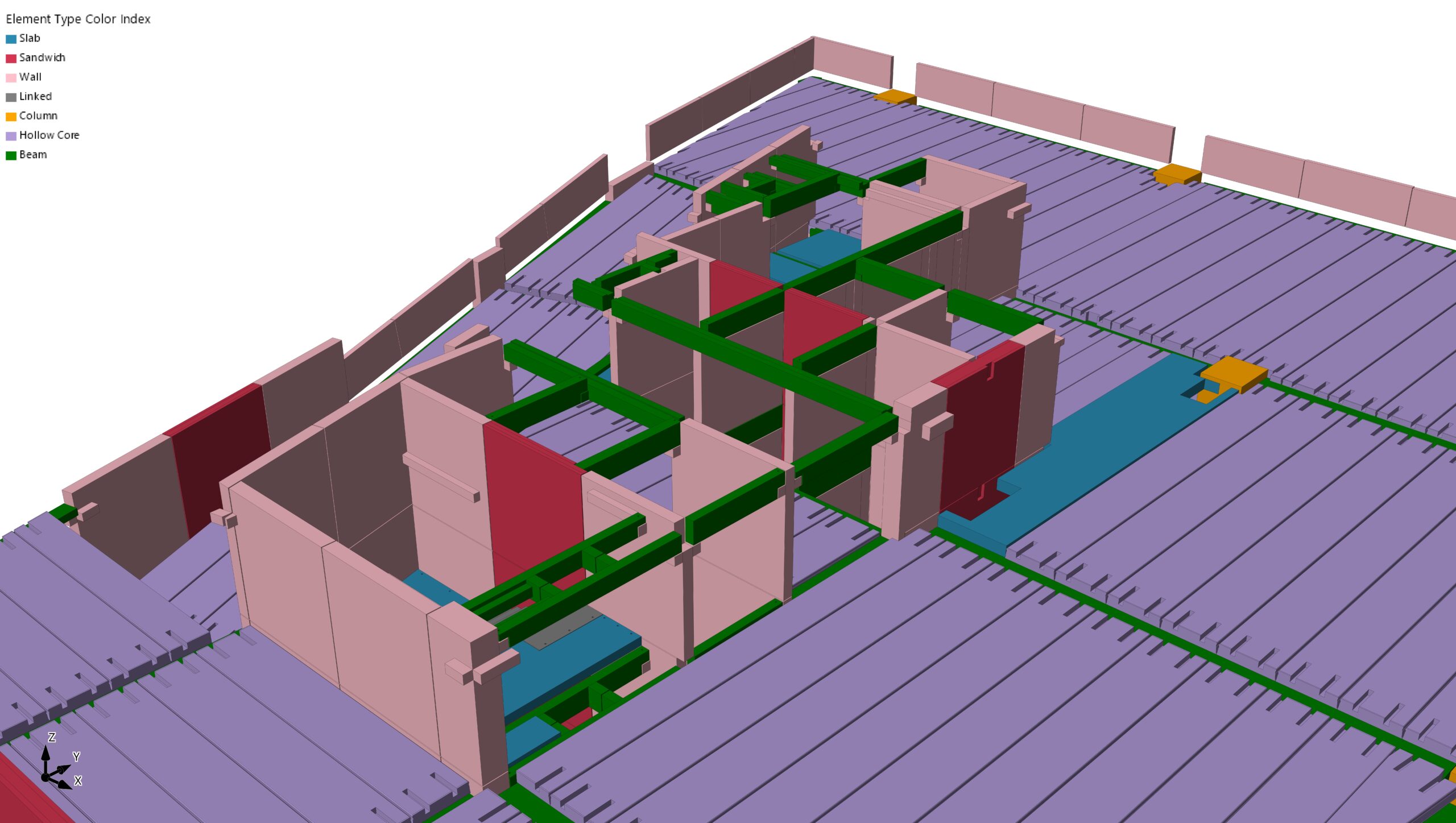

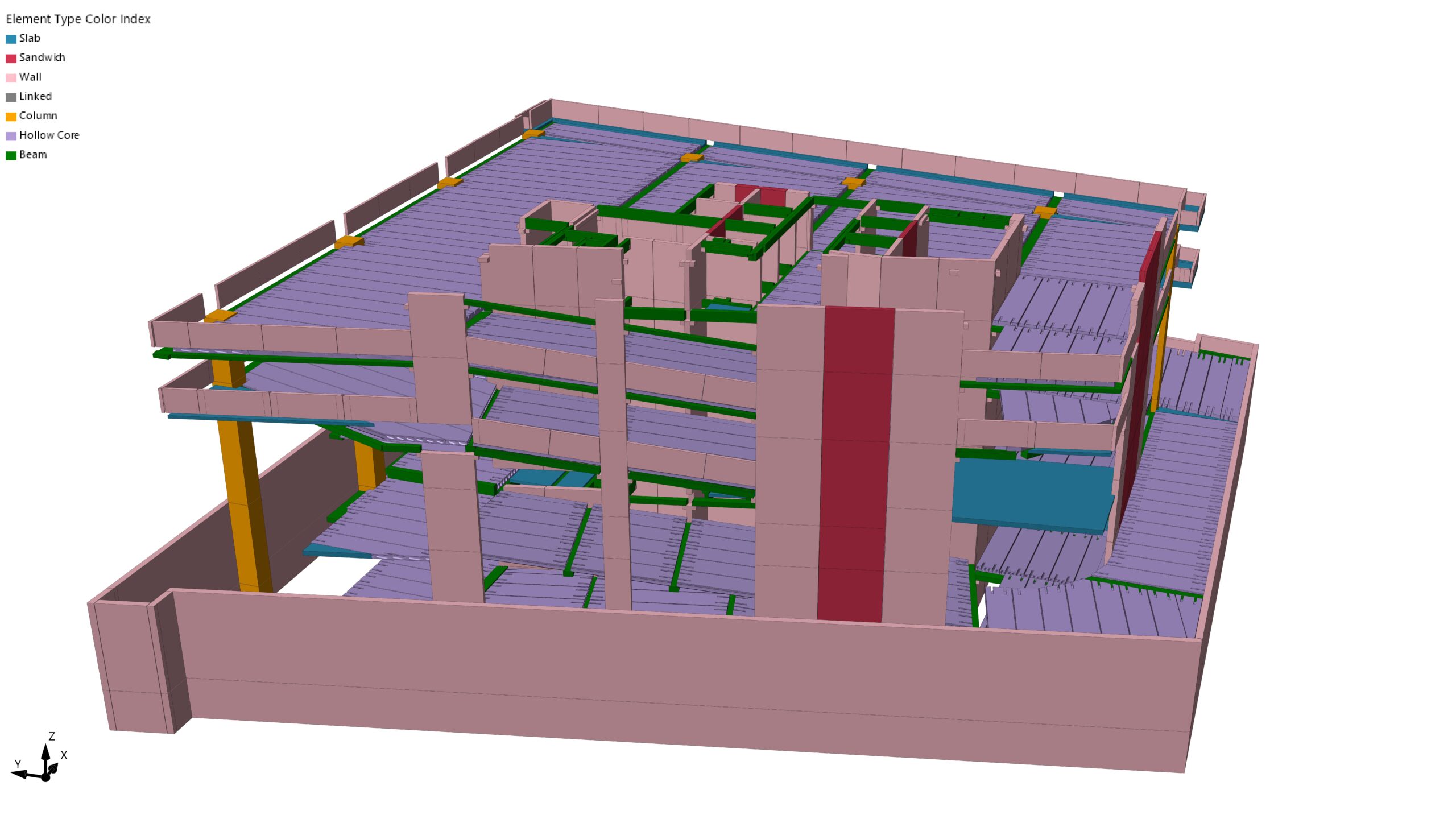

To manage the intersection of REP technology and precast elements, IMPACT Software served as the central hub for model coordination.

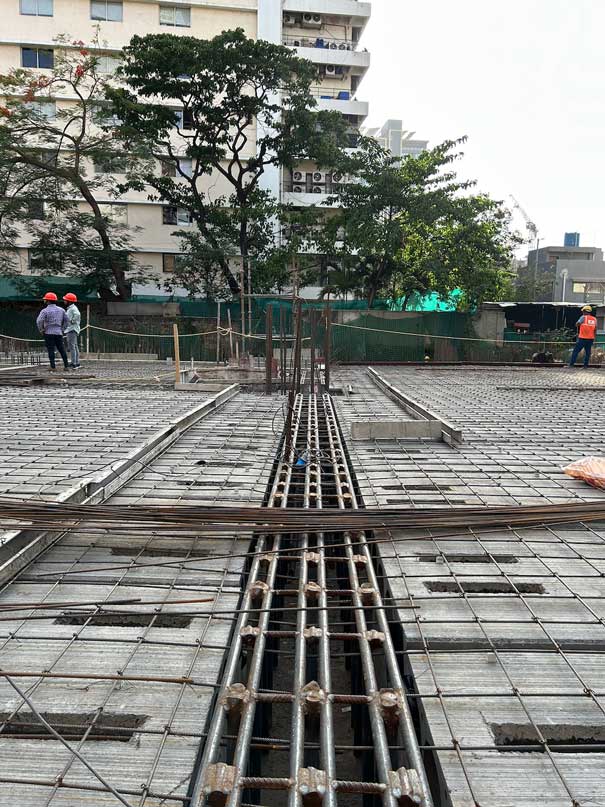

A critical advantage was found in managing wet cast joints. Because these joints were highly complex, the team utilized IMPACT to supervise and resolve potential clashing between rebars protruding from various precast elements. This digital supervision ensured that the hybrid system—combining REP columns and beams with precast shear walls and slabs—could be executed on-site without delays or spatial conflicts.

Engineering Precision: The 20mm Strategy

One of the standout features of this project was our rigorous 20mm tolerance strategy. In precast construction, even a minor deviation can lead to massive delays on-site.

By implementing this strict margin for all elements (excluding staircases), we achieved:

• Seamless Erection: Every component fit perfectly on the first attempt.
• Cost Mitigation: We absorbed site-level deviations within the design phase, eliminating the need for expensive, time-consuming on-site modifications.
• Architectural Integrity: Reduced conflicts between the structural elements and the final architectural finishes.

Collaborative Success: A Specialized Team

The success of a project this size relies on more than just software; it depends on how that software is wielded. A specialized team of five experts managed the entire workflow.

By fostering clear communication and a simultaneous workflow, our team successfully delivered the project within the agreed timelines. Our ability to work hand-in-hand with external stakeholders, developers, and site engineers ensured that the digital precision of IMPACT translated perfectly into physical reality.

Conclusion

This project serves as a benchmark for the Indian construction industry. It proves that with the right technology stack—specifically IMPACT software—and a high-caliber detailing team, Precast Building Systems can deliver multi-functional commercial hubs in record time.

At StruEngineers, we provide our clients with more than just drawings; we provide a high-speed, seamless construction phase that turns complex visions into soaring landmarks.
